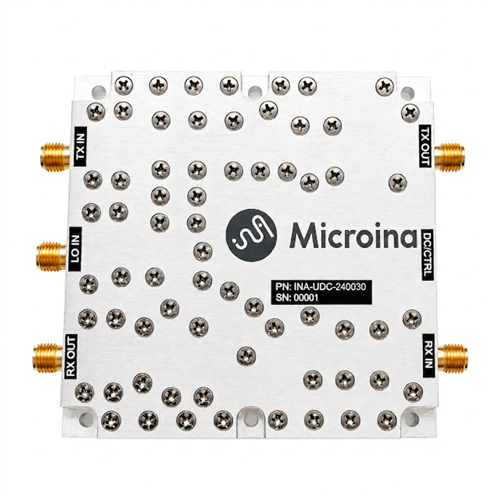

Frequency Converters

INA-UDC-240030

Product Specifications

General Parameters
RF Frequency	23500 to 24500 MHz
LO Frequency	13100 to 14100 MHz
IF Frequency	2700 to 3700 MHz
Noise Figure	5 dB
Switch Time	500 ns (ON/OFF)
Supply Voltage	10 to 14 V
Current Consumption	0.6 to 0.8 A
Output Power	32 to 33 dBm (Upconverter)
Package Type	Module
Input Power	3 to 5 dBm (External LO)
VSWR	2.20:1
Spurious	-70 dBc
Gain	36 to 42 dB
Connectors	SMA, SMA - Female
Input Connector	SMA - Female
Output Connector	SMA - Female
Control	TTL
Material	Chromate Conversion Coated Aluminum
Operating Temperature	-40 to 70 Degree C
Storage Temperature	-40 to 85 Degree C
Dimension	73.6 x 70 x 15 mm (L x W x H)
