Frequency Converters

INA-UDC-140013

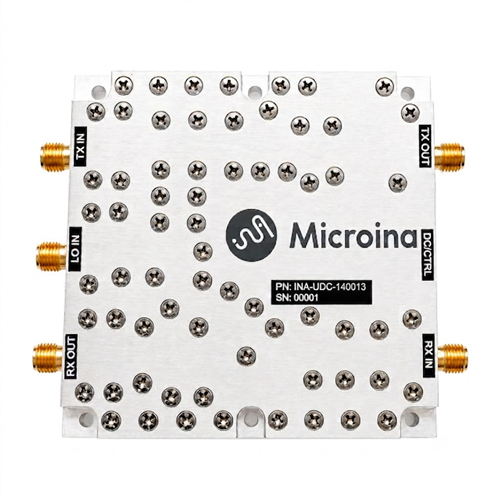

Ku Band Up/Down Converter Module

INA-UDC-140013
Datasheet

Product Specifications

General Parameters
RF Frequency 13750 to 14500 MHz
LO Frequency 12800 MHz
IF Frequency 950 to 1700 MHz
Noise Figure 5 dB
Switch Time 500 ns (ON/OFF)
Supply Voltage 10 to 14 V
Current Consumption 0.6 to 1 A
Output Power 30 to 33 dBm (Upconverter)
Input Power 5 dBm (External LO)
VSWR 2:1
Spurious -70 dBc
Gain 40 dB
Connectors SMA, Female
Control TTL
Operating Temperature -40 to 70 Degree C
Storage Temperature -40 to 85 Degree C
Dimension 73.6 x 70 x 15 mm
