Crystal Oscillators

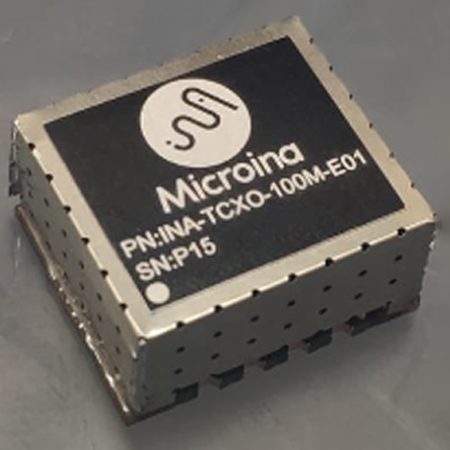

INA-TCXO-100M-E01

100 MHz Ultra-Low Phase Noise TCXO

INA-TCXO-100M-E01
Datasheet

Product Specifications

General Parameters
Sub Categories TCXO
Type TCXO/Ultra Low Phase Noise
Frequency Stability ± 0.28 ppm
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 10 dBm
Phase Noise @ 10 Hz -85 dBc/Hz
Phase Noise @ 100 Hz -125 dBc/Hz
Phase Noise @ 1 kHz -150 dBc/Hz
Phase Noise @ 10 kHz -170 dBc/Hz
Phase Noise @ 100 kHz -175 dBc/Hz
Package Type Surface Mount
Dimension 17 x 14 x 8 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
