Signal Generators

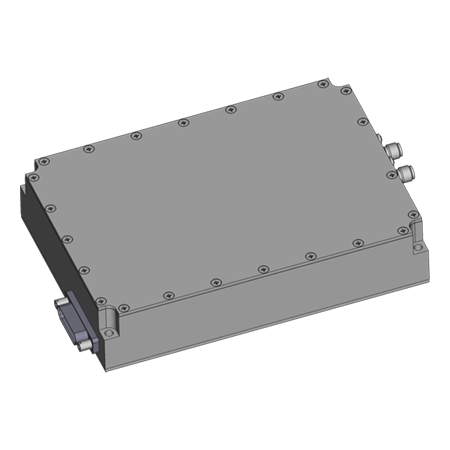

INA-SSG-20M18G-FLT

Product Specifications

General Parameters
Modulation	CW & Pulse
Type	Synthesized Signal Generator
Frequency Range	20 to 18000 MHz
Resolution	1 Hz
Output Power	20 to 23 dBm
Harmonics	-50 dBc
Spurious	-60 dBc
Rise Fall Time	10 ns
Pulse Width	100 ns
Interface	RS485 (Ethernet optional)
Dimension	130 x 90 x 28 mm (L x W x H)
Weight	500 gr
Output Connector	SMA, SMA - Female
Temperature	-40 to 70 Degree C
Storage Temperature	-40 to 85 Degree C
Frequency Accuracy	±1 ppm
Sub Harmonics	-50 dBc
