Pin Diode Switches

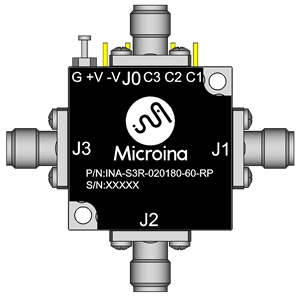

INA-S3R-020180-60-RP

Solid State Pin Diode SP3T Reflective Switch from 2 to 18 GHz

•  Datasheet
• Request a Quote

Product Specifications

General Parameters
Type	Solid State
Configuration	SP3T
Termination	Reflective
Impedance	50 Ohms
Frequency	2 to 18 GHz
Insertion Loss	2.2 dB max.
Isolation	60 dB min.
Power dBm	30 dBm max.
Power W	1 W max.
Control	TTL
Control Voltage	0 to 0.8 V (Low), 2.2 to 5 V (High)
Supply Voltage	-15 to -4.8 V (Negative), 4.8 to 6 V (Positive)
Supply Current	+100 mA, -24 mA
VSWR	2.0:1
Process	Pin Diode
Package Type	Module with Connectors
Dimension	25.4 x 25.4 x 13 mm (L x W x H)
Connectors	SMA, SMA - Female
Operating Temperature	-40 to 85 Degree C
Storage Temperature	-55 to 125 Degree C
