Dielectric Oscillators

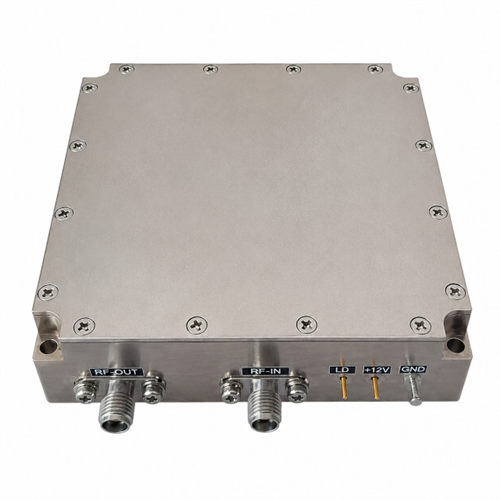

INA-PLO-40000-100-IE

Product Specifications

General Parameters
Application	Military
Frequency	40 GHz
External Reference Frequency	100 MHz
Frequency Stability	±0.5 to ±1 ppm
Output Power	18 dBm
External Reference Power	-5 to 5 dBm
Power Variation	±1.25 dB
Phase Noise	-110 dBc/Hz @ 100 kHz
Phase Noise @ 1kHz	-100 dBc/Hz
Phase Noise @ 10 kHz	-110 dBc/Hz
Phase Noise @ 100 kHz	-110 dBc/Hz
Phase Noise @ 1 MHz	-125 dBc/Hz
Sub Harmonics	-75 dBc
Spurious	-80 dBc
Impedance	50 Ohm
Supply Voltage	11.8 to 12.2 V
Dc Current	400 mA
Internal Reference	100 MHz
Operating Temperature	-40 to 70 Degree C
Storage Temperature	-40 to 85 Degree C
Connector	SMA - Female
RF Connector	SMA - Female
Input Reference Connector	SMA - Female
Package Type	Module with Connectors
Dimension	80 x 80 x 22 mm
