Dielectric Oscillators

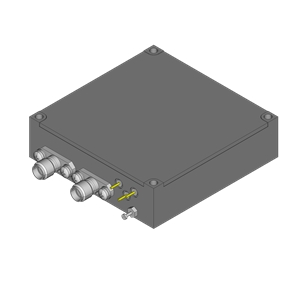

INA-PLO-10000-100-E

Product Specifications

General Parameters
Application	Military
Frequency	10 GHz
External Reference Frequency	100 MHz
Output Power	14 to 15 dBm
External Reference Power	-3 to 3 dBm
Power Variation	±0.5 dB
Phase Noise	-120 dBc/Hz @ 100 kHz
Phase Noise @ 1kHz	-110 dBc/Hz
Phase Noise @ 10 kHz	-120 dBc/Hz
Phase Noise @ 100 kHz	-120 dBc/Hz
Phase Noise @ 1 MHz	-135 dBc/Hz
Harmonics	-30 dBc
Sub Harmonics	None
Spurious	-100 dBc
VSWR	Load VSWR: 3.0:1 (Max)
Impedance	50 Ohm
Supply Voltage	11.5 to 12.5 V
Dc Current	200 mA
Internal Reference	None
Operating Temperature	-40 to 75 Degree C
Storage Temperature	-40 to 85 Degree C
Connector	SMA - Female
RF Connector	SMA - Female
Input Reference Connector	SMA - Female
Package Type	Module with Connectors
Dimension	2.25 x 2.25 x 0.63 Inches
