Crystal Oscillators

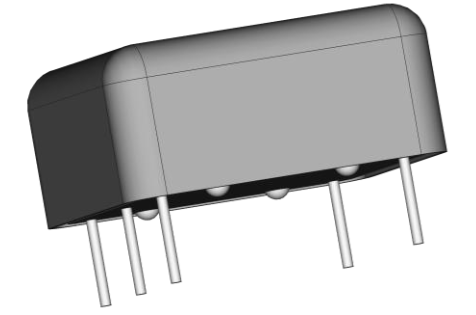

INA-OCXO Series

Ultra-Low Phase Noise OCXO

INA-OCXO Series
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Ultra Low Phase Noise
Frequency Stability -10 to +10 ppb, -200 to +200 ppb
Supply Voltage 5 V, 12 V
Output Load 50 Ohms
Output Power 14 dBm
Start Up Time 400 ms
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -140 dBc/Hz @ 10 MHz, -105 dBc/Hz @ 100 MHz, -82 dBc/Hz @ 1000 MHz
Phase Noise @ 100 Hz -150 dBc/Hz @ 10 MHz, -134 dBc/Hz @ 100 MHz, -112 dBc/Hz @ 1000 MHz
Phase Noise @ 1 kHz -160 dBc/Hz @ 10 MHz, -164 dBc/Hz @ 100 MHz, -138 dBc/Hz @ 1000 MHz
Phase Noise @ 10 kHz -165 dBc/Hz @ 10 MHz, -180 dBc/Hz @ 100 MHz, -155 dBc/Hz @ 1000 MHz
Phase Noise @ 100 kHz -170 dBc/Hz @ 10 MHz, -185 dBc/Hz @ 100 MHz, -160 dBc/Hz @ 1000 MHz
Dimension 25.4 x 25.4 x 12.7 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
