Crystal Oscillators

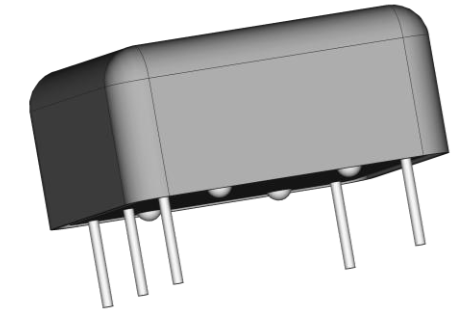

INA-OCXO-128M-E01

128 MHz Ultra Low Phase Noise OCXO

INA-OCXO-128M-E01
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Ultra Low Phase Noise
Frequency Stability -300 to +300 ppb
Supply Voltage 12 V
Output Load 50 Ohms
Output Power 17 dBm
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -105 dBc/Hz
Phase Noise @ 1 kHz -164 dBc/Hz
Phase Noise @ 10 kHz -175 dBc/Hz
Phase Noise @ 100 kHz -178 dBc/Hz
Dimension 25.4 x 25.4 x 12.7 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
