Crystal Oscillators

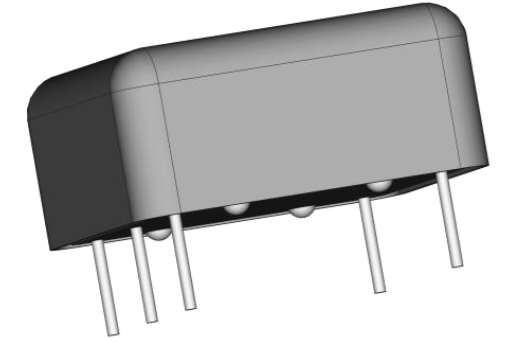

INA-OCXO-10M-E01

10 MHz Ultra Low Phase Noise OCXO

INA-OCXO-10M-E01
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Ultra Low Phase Noise
Frequency Stability -10 to +10 ppb
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 13 dBm
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -140 dBc/Hz
Phase Noise @ 1 kHz -160 dBc/Hz
Phase Noise @ 10 kHz -165 dBc/Hz
Phase Noise @ 100 kHz -170 dBc/Hz
Dimension 25.4 x 25.4 x 12.7 mm
Operating Temperature -20 to 70 Degree C
Storage Temperature -40 to 85 Degree C
