Crystal Oscillators

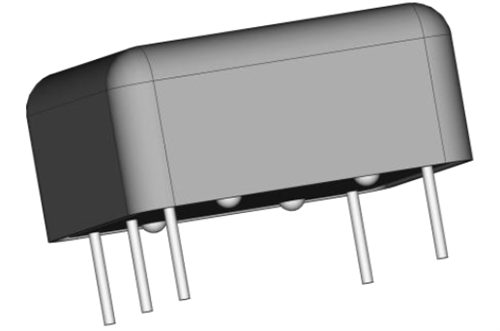

INA-OCXO-10M/100M/1000M-E01

10 MHz, 100 MHz, 1000 MHz Ultra-Low Phase Noise OCXO

INA-OCXO-10M/100M/1000M-E01
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Ultra Low Phase Noise
Frequency Stability ±50 ppb
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 14 dBm
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -140 dBc/Hz @ 10 MHz, -123 dBc/Hz @ 100 MHz, -102 dBc/Hz @ 1000 MHz
Phase Noise @ 100 Hz -155 dBc/Hz @ 10 MHz, -130 dBc/Hz @ 100 MHz, -110 dBc/Hz @ 1000 MHz
Phase Noise @ 1 kHz -160 dBc/Hz @ 10 MHz, -160 dBc/Hz @ 100 MHz, -140 dBc/Hz @ 1000 MHz
Phase Noise @ 10 kHz -168 dBc/Hz @ 10 MHz, -173 dBc/Hz @ 100 MHz, -155 dBc/Hz @ 1000 MHz
Phase Noise @ 100 kHz -170 dBc/Hz @ 10 MHz, -178 dBc/Hz @ 100 MHz, -155 dBc/Hz @ 1000 MHz
Dimension 81.3 x 50.8 x 19.0 mm
Operating Temperature -40 to 75 Degree C
Storage Temperature -40 to 85 Degree C
