Crystal Oscillators

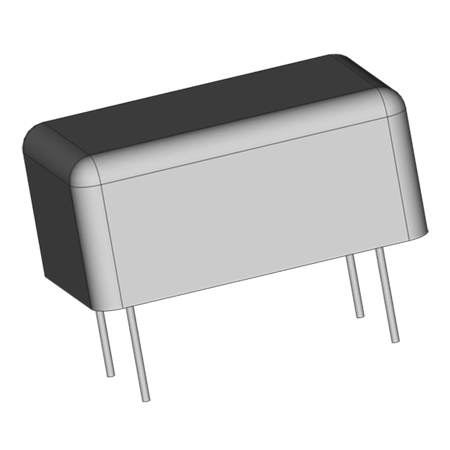

INA-OCXO-100M-P02

100 MHz, Low Phase Noise Miniature OCXO

INA-OCXO-100M-P02
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Low Phase Noise
Frequency Stability ±200 ppb
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 13 dBm
Start Up Time 300 ms
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -100 dBc/Hz​
Phase Noise @ 100 Hz -132 dBc/Hz​
Phase Noise @ 1 kHz -162 dBc/Hz​
Phase Noise @ 10 kHz -173 dBc/Hz​
Phase Noise @ 100 kHz -175 dBc/Hz​
Package Type Through Hole
Dimension 20.7 x 13.1 x 9.5 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
