Crystal Oscillators

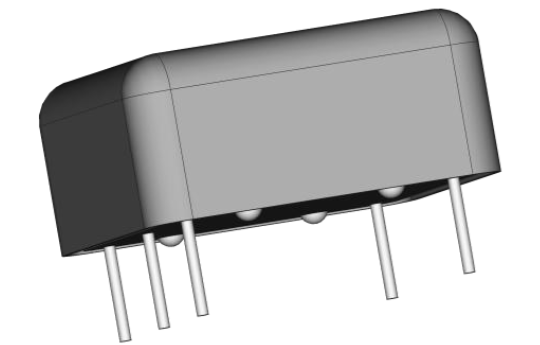

INA-OCXO-100M-P01

100 MHz Low Phase Noise OCXO

INA-OCXO-100M-P01
Datasheet

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Low Phase Noise
Frequency Stability -300 to +300 ppb
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 19 dBm
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -100 dBc/Hz
Phase Noise @ 1 kHz -160 dBc/Hz
Phase Noise @ 10 kHz -173 dBc/Hz
Phase Noise @ 100 kHz -175 dBc/Hz
Dimension 25.4 x 25.4 x 12.7 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
