Crystal Oscillators

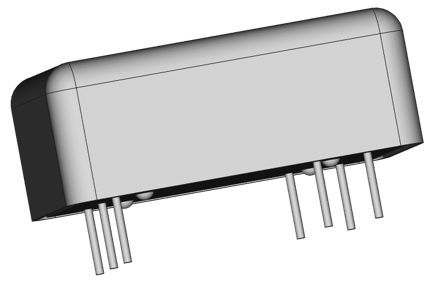

INA-OCXO-1000M-P02

1 GHz Sine Wave Output OCXO

INA-OCXO-1000M-P02
INA-OCXO-1000M-P02_Datasheet_RevP1

Product Specifications

General Parameters
Sub Categories OCXO
Type OCXO/Low Phase Noise
Frequency Stability ±500 ppb
Supply Voltage 5 V
Output Load 50 Ohms
Output Power 14 dBm
Start Up Time 300 ms
Warm Up Time 5 Minutes
Phase Noise @ 10 Hz -82 dBc/Hz
Phase Noise @ 100 Hz -112 dBc/Hz
Phase Noise @ 1 kHz -138 dBc/Hz
Phase Noise @ 10 kHz -150 dBc/Hz
Phase Noise @ 100 kHz -155 dBc/Hz
Package Type Thru-Hole
Dimension 36 x 27 x 15 mm
Operating Temperature -40 to 85 Degree C
Storage Temperature -40 to 85 Degree C
