Driver Amplifiers

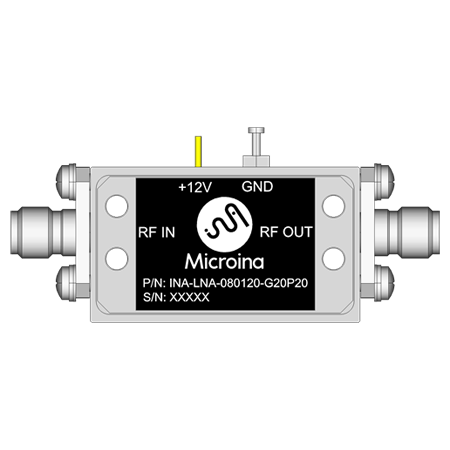

INA-LNA-080120-G20P20

Product Specifications

General Parameters
Configuration	Module with Connector
Industry Application	Radar, Electronic Warfare, SATCOM, Test & Measurement
Type	Low Noise Amplifier
Frequency	8000 to 12000 MHz
Small Signal Gain	21 dB
Gain Flatness	+/-1 dB
Noise Figure	2 dB
Power dBm	23 dBm
Power W	0.2 W
P1dB dBm	21 dBm
P1dB W	0.13 W
Input Power dBm	32 dBm
Input Power W	1.6 W
Input VSWR	2:1
Output VSWR	2:1
Supply Voltage	8 to 12.5 V
Current Consumption	170 mA
Dimensions	32.5 x 18.8 x 9.3 (L x W x H)
Weight	17 gr
Input Connector	SMA - Female
Output Connector	SMA - Female
Operating Temperature	-40 to 85 Degree C
Storage Temperature	-55 to 125 Degree C
Cooling Options	External Heatsink
Pulsed CW	CW
