Digital Attenuators

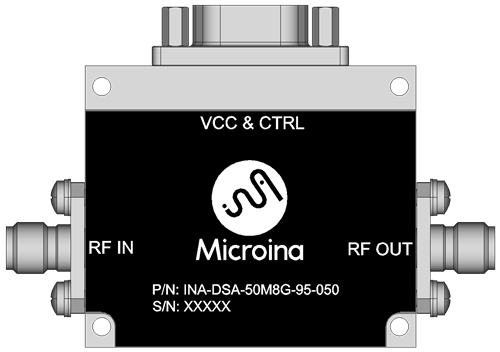

INA-DSA-50M8G-95-050

Product Specifications

General Parameters
Operating Frequency	50 to 8000 MHz
Attenuation Range	95 dB
Attenuation Step Size	0.5 dB
Attenuation Flatness	TBD
Insertion Loss (10 MHz- 2 GHz)	4 dB
Insertion Loss (2 GHz - 6 GHz)	5 dB
Insertion Loss (6 GHz - 8 GHz)	7 dB
Input VSWR (All States)	1.5:1
Output VSWR (All States)	1.5:1
Input CW Operating Power ( 50 MHz – 8 GHz)	28 dBm
Operating DC Voltage	+5 Volts
Operating DC Current	10 mA
Control Inputs (C1, C2, …, C9)	0V-0.6V: Low, 1.2V-3.6V: High
DC Voltage	+5.5 Volts
RF Input Power (CW)	28 dBm
Operating Case Temperature	-40°C to 85°C
Storage Temperature	-55°C to 125°C
Dimensions (L x W x H)	40.0 x 34.0 x 10.0 mm
Weight	TBD
RF Connector, Input	SMA, Female
RF Connector, Output	SMA, Female
DC & Control Connector	Micro-D 15 Position Female
Mechanical Housing	Nickel Plated Aluminum
