Digital Attenuators

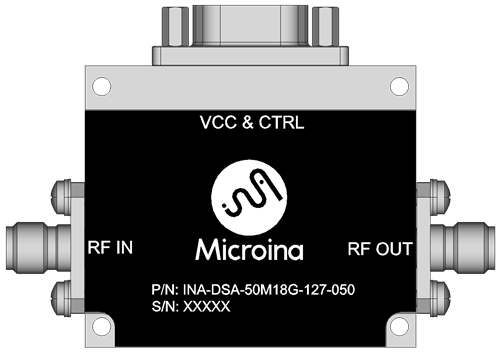

INA-DSA-50M18G-127-050

Product Specifications

General Parameters
Operating Frequency	50 to 18000 MHz
Attenuation Range	127.5 dB
Attenuation Step Size	0.5 dB
Attenuation Flatness	TBD
Input VSWR (All States)	2:1
Output VSWR (All States)	2:1
Input CW Operating Power ( 50 MHz – 8 GHz)	23 dBm
Operating DC Voltage	+5.5 Volts
Operating DC Current	10 mA
Control Inputs (C1, C2, …, C9)	0V-0.8V: Low, 1.2V-3.3V: High
DC Voltage	+5.5 Volts
RF Input Power (CW)	24 dBm
Operating Case Temperature	-40°C to 85°C
Storage Temperature	-55°C to 125°C
Dimensions (L x W x H)	40.0 x 34.0 x 10.0 mm
Weight	TBD
RF Connector, Input	SMA, Female
RF Connector, Output	SMA, Female
DC & Control Connector	Micro-D 15 Position Female
Mechanical Housing	Nickel Plated Aluminum
