Driver Amplifiers

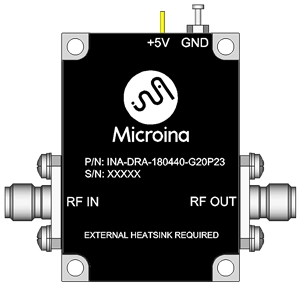

INA-DRA-180440-G20P23

Product Specifications

General Parameters
Configuration	Module with Connector
Industry Application	Radar, Electronic Warfare, SATCOM, Test & Measurement
Type	Driver Amplifier
Frequency	18000 to 44000 MHz
Small Signal Gain	20 dB
Gain Flatness	±2.5 dB
Noise Figure	5 to 10 dB
Power dBm	25 dBm (Psat)
Power W	0.32 W
P1dB dBm	23 dBm
P1dB W	0.19 W
OIP3 dBm	33 dBm
OIP3 W	1.99 W
Psat dBm	25 dBm
Psat W	0.32 W
Input Power dBm	20 dBm
Input Power W	0.1 W
PAE	10%
Input VSWR	2.20:1
Output VSWR	2.20:1
Supply Voltage	5 V
Current Consumption	800 mA
Package Type	Module with Connector
Dimensions	30 x 42 x 10.3 mm (L x W x H)
Input Connector	2.92 mm - Female
Output Connector	2.92 mm - Female
Operating Temperature	-40 to 70 Degree C
Storage Temperature	-40 to 85 Degree C
Cooling Options	External Heatsink
Pulsed CW	CW
