Driver Amplifiers

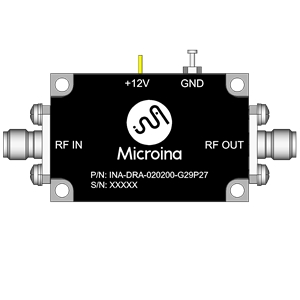

INA-DRA-020200-G29P27

Product Specifications

General Parameters
Configuration	Module with Connector
Industry Application	Radar, Electronic Warfare, SATCOM, Test & Measurement
Type	Driver Amplifier
Frequency	2000 to 20000 MHz
Small Signal Gain	30 dB
Gain Flatness	±1.5 dB
Noise Figure	3 to 6 dB
Power dBm	27 dBm (P3dB)
Power W	0.50 W
P1dB dBm	25 dBm
P1dB W	0.32 W
Input Power dBm	24 dBm
Input Power W	0.25 W
Input VSWR	2.0:1
Output VSWR	2.0:1
Supply Voltage	12 V
Current Consumption	450 mA
Package Type	Module with Connector
Dimensions	40 x 26 x 10.3 mm (L x W x H)
Weight	32 g
Input Connector	SMA - Female
Output Connector	SMA - Female
Operating Temperature	-40 to 85 Degree C
Storage Temperature	-55 to 125 Degree C
Cooling Options	External Heatsink
Pulsed CW	CW
