Driver Amplifiers

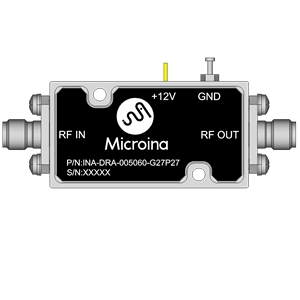

INA-DRA-005060-G27P27

Product Specifications

General Parameters
Configuration	Module with Connector
Industry Application	Radar, Electronic Warfare, SATCOM, Test & Measurement
Type	Driver Amplifier
Frequency	500 to 6000 MHz
Small Signal Gain	28 dB
Gain Flatness	±1.25 dB
Noise Figure	3 dB
Power dBm	28 dBm
Power W	0.63 W
P1dB dBm	28 dBm
P1dB W	0.63 W
Input Power dBm	20 dBm
Input Power W	0.1 W
PAE	20%
Input VSWR	1.50:1
Output VSWR	1.50:1
Supply Voltage	11.5 to 15 V
Current Consumption	220 mA
Package Type	Module with Connector
Dimensions	40.4 x 21.8 x 8.4 mm (L x W x H)
Weight	21.4 g
Input Connector	SMA - Female
Output Connector	SMA - Female
Operating Temperature	-40 to 85 Degree C
Storage Temperature	-55 to 125 Degree C
Cooling Options	External Heatsink
Pulsed CW	CW
